Extruded Cupronickel Copper Tube Coils for Water Heater Boilers , Fin Coil

Brand Name : HZFT
Model Number : M-11045.185100-00
Certification : ISO9001:2008
Place of Origin : China
MOQ : 1 Pcs
Price : 1 - 60 USD/Meter
Payment Terms : L/C , T/T
Supply Ability : 2000 Meter / Day
Delivery Time : 1 - 30 Days
Packaging Details : Plywood Sea - Worthy Case or Pallet
Material : C12000 / C12200 / C70600
Outer Diameter : 27.5MM
Inner Diameter : 16.5MM
Wall Thickness : 1MM
Fin Height : 4.5MM
FPI : 11
Contact Now

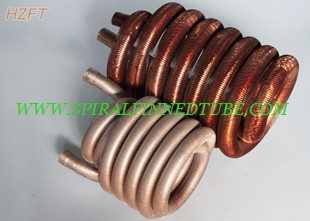

Integrated Copper Nickel / Copper Tube Coil as Heat Exchanger for Tankless Water Heaters​

Quick Details:

1. Tube based on roll forming process

2. High thermal conductivity and compact design

3. Save cost and assembling space due to higher efficiency

4. ISO 9001:2008 quality certified

5. Well sold in USA, Australia, Germany, etc.


1. Optimized heat exchange performance of raw material with extruding process

2. Compact design consuming less assembling space

3. Flexible for customized design after soft annealing

4. Copper is a hygienic and antimicrobial material for use in drink water systems

5. Tin plating for both inside and outside surface is possible, if requested

6. Easier to stock after surface treatment

7. Resistance to both vibration and corrosion

8. Cost saving from longer service life and less assembling space

Tube Number Code System

Take Tube Number M-11045.180100.00 as example







M=Medium Height



Minimum fins per Inch

Fin Height in 1/10 mm

Minimum Root Diameter in 1/10 mm

Root Wall-thickness in 1/100 mm

Code of Inner Surface





Process Flow:

1. Order raw material due to customers' requirements.

2. Inspection on raw material at arrival

3. Roll forming the fin tube, while monitoring the whole process / Extruding or finning process

4. Cut into required length

5. Inspection on specification of finned tube

6. If required, we provide de-fin process, soft annealing, bending and coiling, welding connectors

7. Clean procedure, pressure test and drying

8. Packing for delivery


The finned tube coils or heat exchangers are mainly used in heating(gas-fired boilers, condensing boilers, flue gas condensers), in heating of drink waters and as tankless water heaters, in mechanical and automotive engineering(oil coolers, mine coolers, air coolers for diesel engines), in chemical engineering(gas coolers and heater, process cooler), in power plants(air cooler, cooling tower), and in nuclear engineering(uranium enrichment plants).
